Description

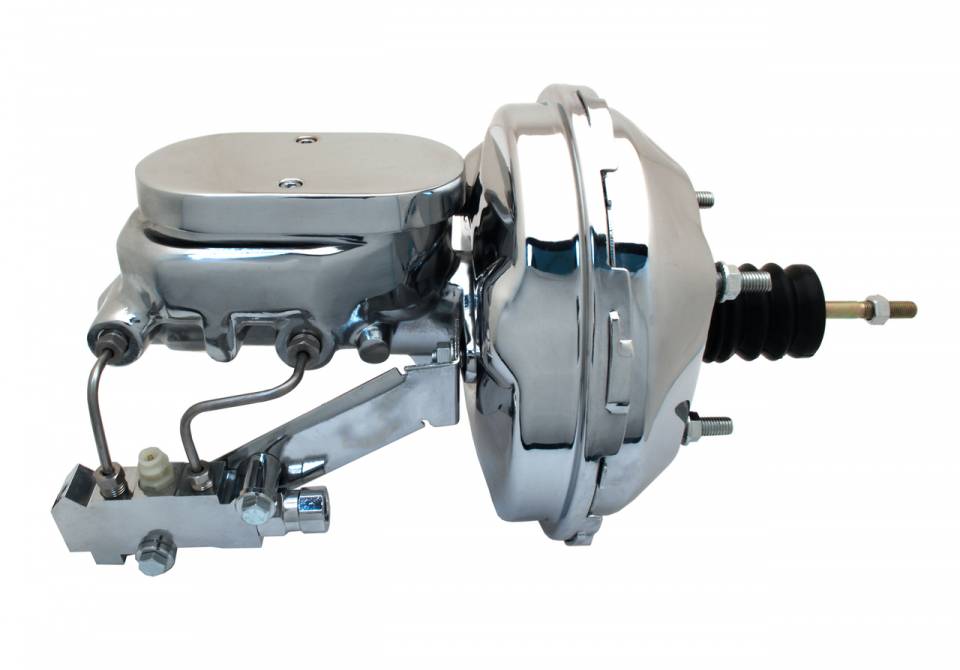

1964-1972 GM A Body (Chevelle, GTO, Skylark) 1967-1969 F Body (Camaro, Firebird) 1968-1974 Chevy Nova

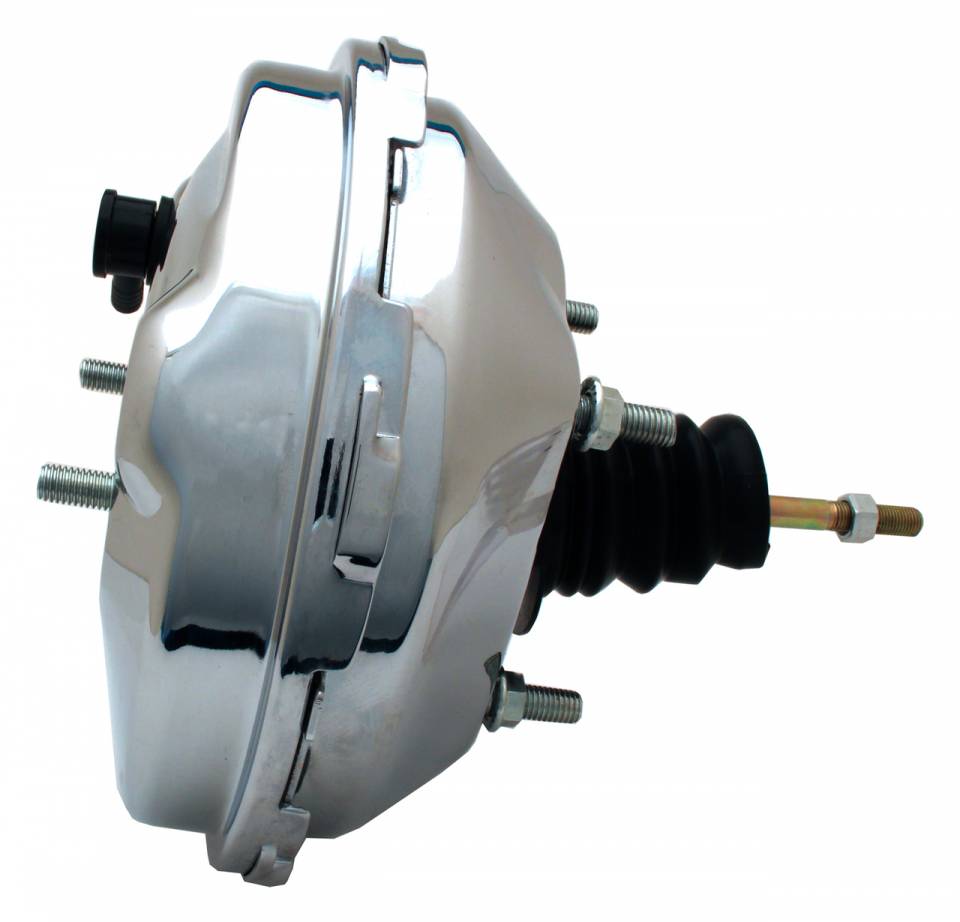

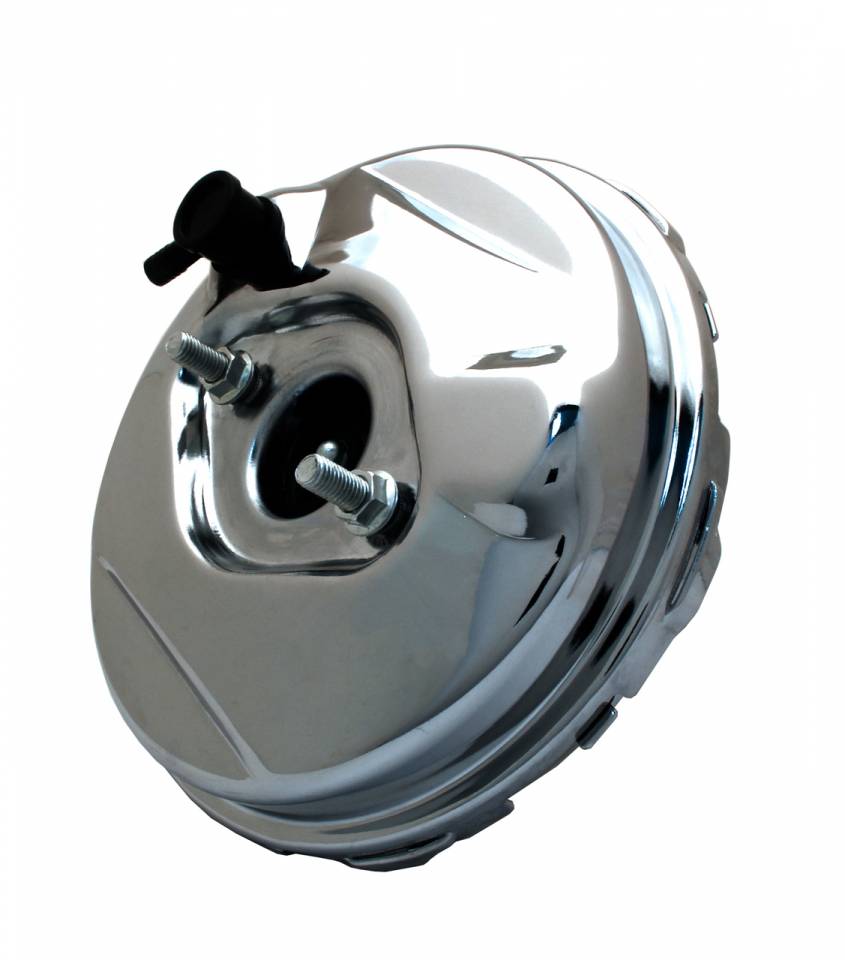

- 9" Single Chrome Power Brake Booster

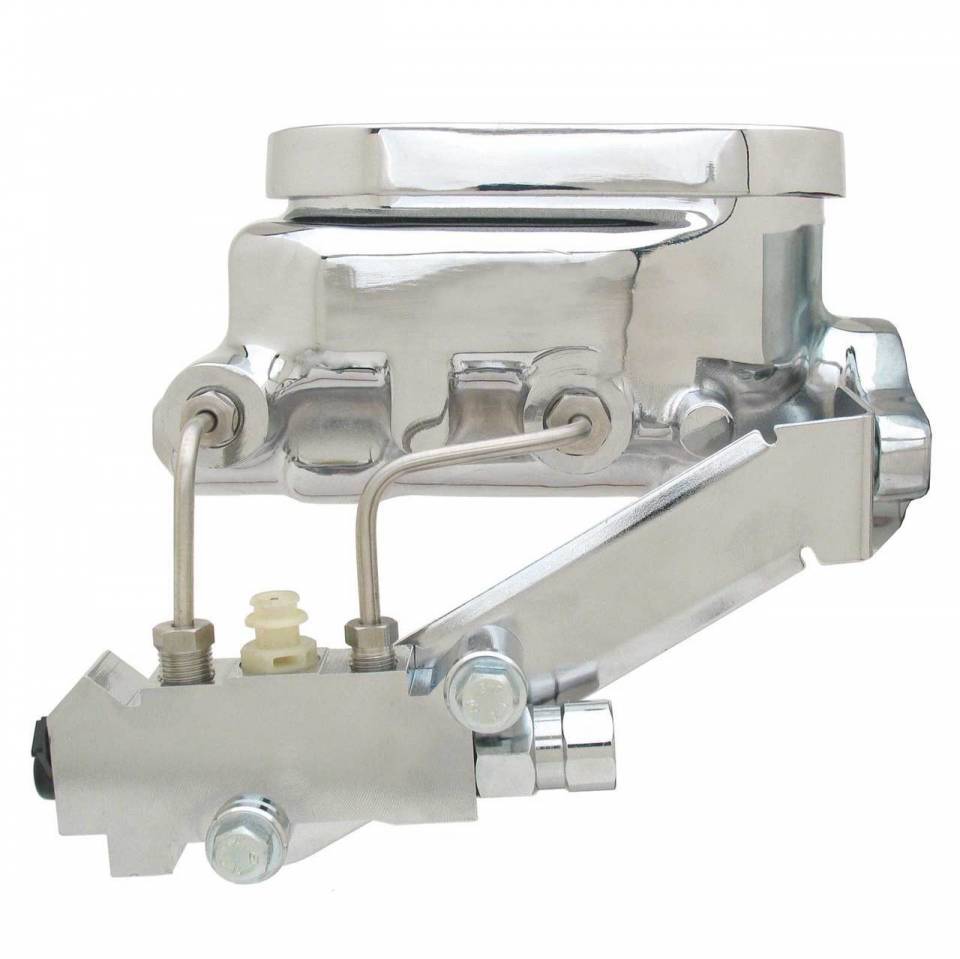

- Aluminum Chrome Flat Top Master Cylinder
- Disc/ Disc Chrome Proportioning Valve
- Left Mount Proportioning Valve Kit (2) 3/8"-24 For Front Brakes & (1) 9/16"-18 For Rear Brakes

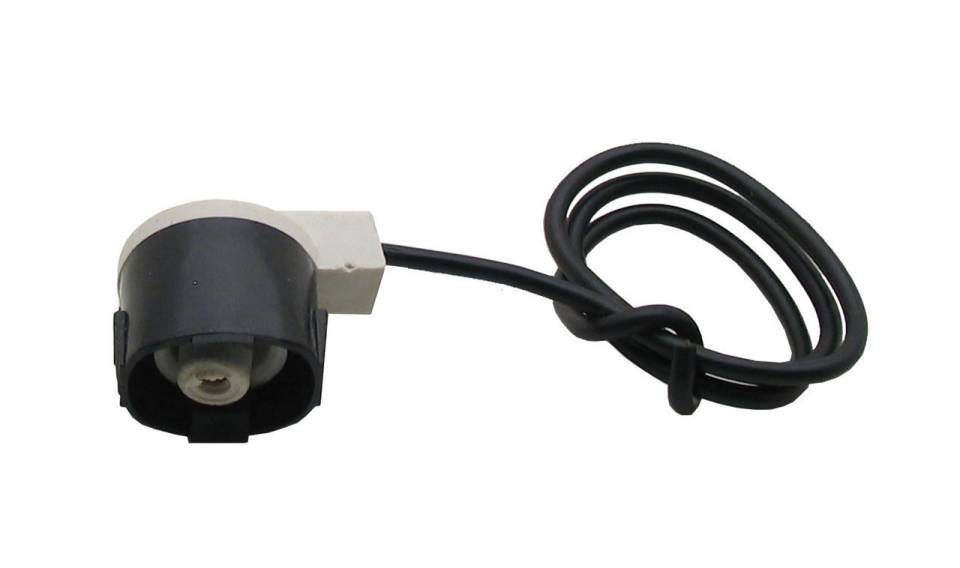

- Valve bracket, stainless steel lines, & brake light warning switch, mounting hardware

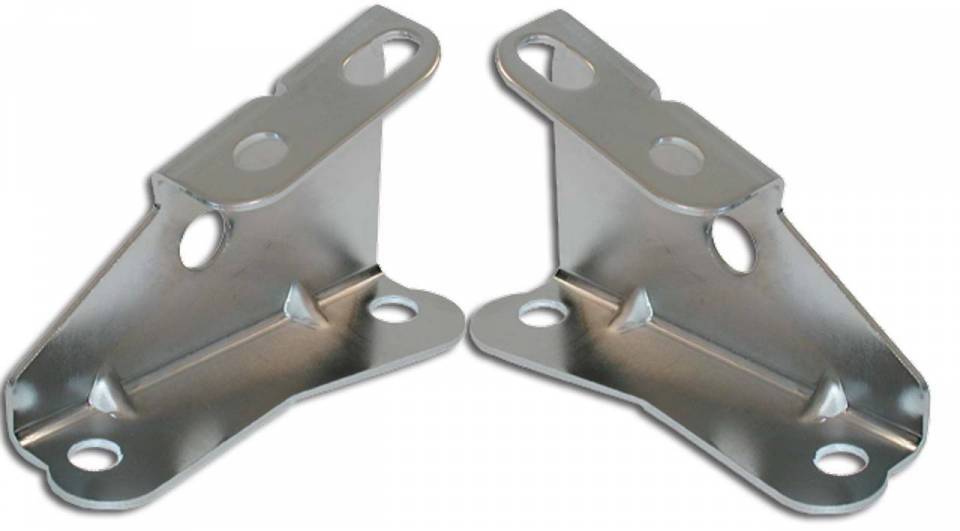

- Angle firewall brackets
- Pedal rod extension & clevis
Specification:
- Part Number: GM-353
- UPC: 635648187754
- Application Type: Disc/ Disc
- Minimum Order: 1
- Application Specific: Yes
- ApplicationFlags: None
- Country of Origin: China
- Safety Material: NO
- Master Cylinder Material: Aluminum
- Master Cylinder Bail Type: Flat Top Screw Lid
- Master Cylinder Finish: Aluminum Chrome
- Master Cylinder Port Sizes: 9/16-20 & 1/2-20
- Master Cylinder Built In Residual Valves: No
- Master Cylinder Bore Size: 1-1/8"
- Proportioning Valve Type: Chrome
- Proportioning Valve Location: Left Mount
- Booster Bracket Finish: Chrome
- Brake Booster Type: Vacuum Diaphram
- Brake Booster Diameter: 9"
- Booster Brake Material: Steel
- Brake Booster Finish: Chrome
- Pedal Rod Included: Yes
- Mounting Bracket Included: Yes
- Application Notes: Disc/ Drum applications direct bolt on. No modifications needed.
- Shipping Box Size: 15x11x13
- Shipping Weight: 23 lbs.
