Description

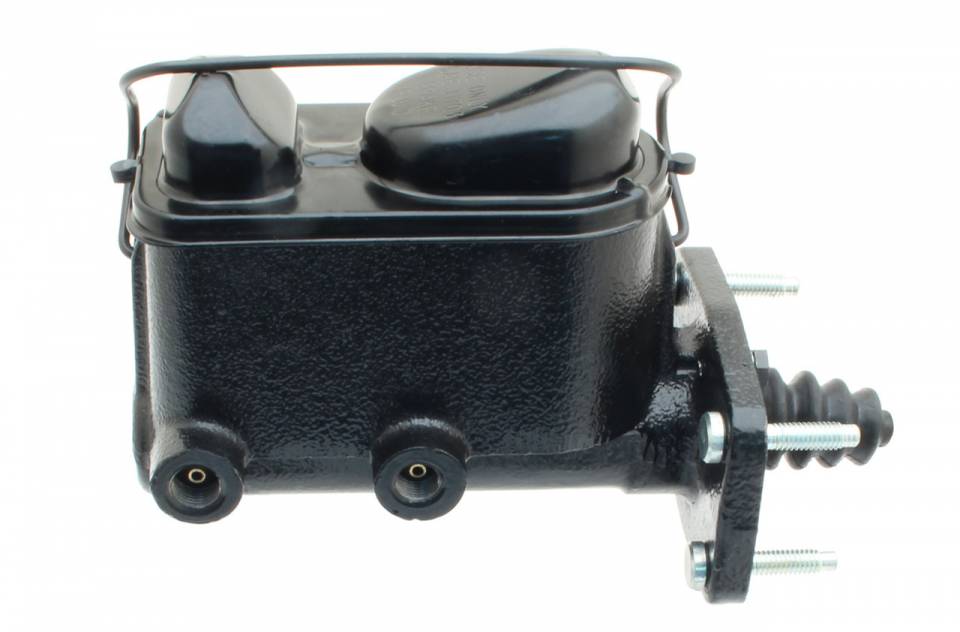

1960-1970 Mopar Master Cylinder Disc Applications.
- 1.125" Bore
- 9/16"-20 INV & 1/2"-20 INV Ports
- Internal residual valve for rear brakes 10 LB.
- Bendix Style; Near identical to original 2225621 with correct lid inscription
- Master is period correct used on all non Hemi applications, and also correct for Hemi applications from 1967-70.
- Cast finish
- Firewall boot & 4 Bolts included!
- Firewall bolts will come pre installed. If you are using for the master cylinder for power brakes you will need to tap out the bolts and remove the boot on the back of the master cylinder.
- 7 Lbs.
Specification:
Part Number: MC5621
Applicaiton Type: Disc/Drum
Minimum Order: 1
Application Specific: Yes
Application Flags: None
Country Of Orgin: China
Safety Materal: NO
Master Cylinder Material: Cast Iron
Master Cylinder Bail Type: Single Bail Black Lid
Master Cylinder Finish: Black
Master Cylinder Port Sizes: 9/16-20 & 1/2-20
Master Cylinder Built In Residual Valves: Yes
Master Cylinder Bore Size: 1.125"
Brake Booster Type: N/A
Brake Booster Diameter: N/A
Brake Booster Material: N/A
Brake Booster Finish: N/A
Booster Bracket Finish: N/A
Proportioning Valve Location: N/A
Proportioning Valve Type: N/A
Pedal Rod Included: No
Mounting Bracket Included: N/A
Application Notes: Mopar period correct master cylinder with 2225621 casting
Box Dimensions: 14x8x8
Weight: 9
